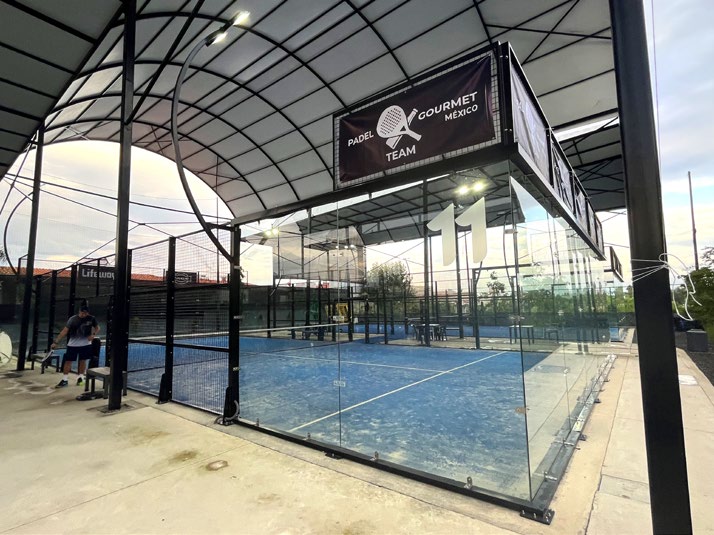

Higher Underground Roof
Taller, heavier-section roof for multi-court halls and tournament clearance.
ModelFX-P07P
- 150 × 150 × 4.5 mm pillars
- Up to 10.8 m top clearance
- Spans multiple courts
- Double transparent PVDF cover
Specification
Every detail, engineered.
Dimensions
6–8 m side height, 8.8–10.8 m top height
Pillars & structure
8 pillars 150 × 150 × 4.5 mm at 6–8 m high
Frame
Beams 100 × 100 × 3 mm + 80 × 80 × 3 mm
LED lighting
Roof-mounted LED, specified per project
Light post
Integrated into the roof frame
Roof
Double transparent PVDF, 900 g/m²
Components
Stainless steel 304 — rubber pads, bolts, glass fittings and hardware
Best for
Multi-court halls, tournament venues, high-clearance sites
