Panoramic

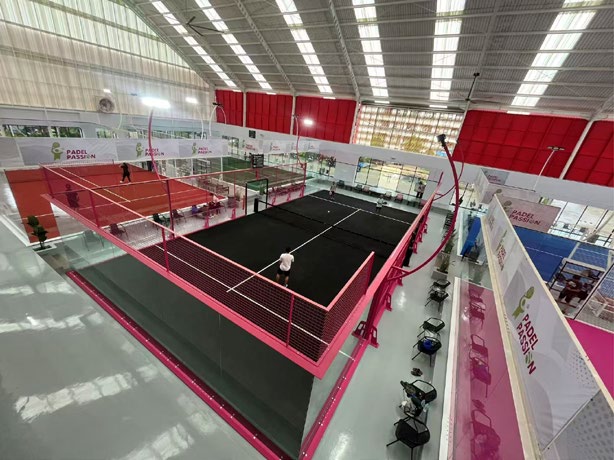

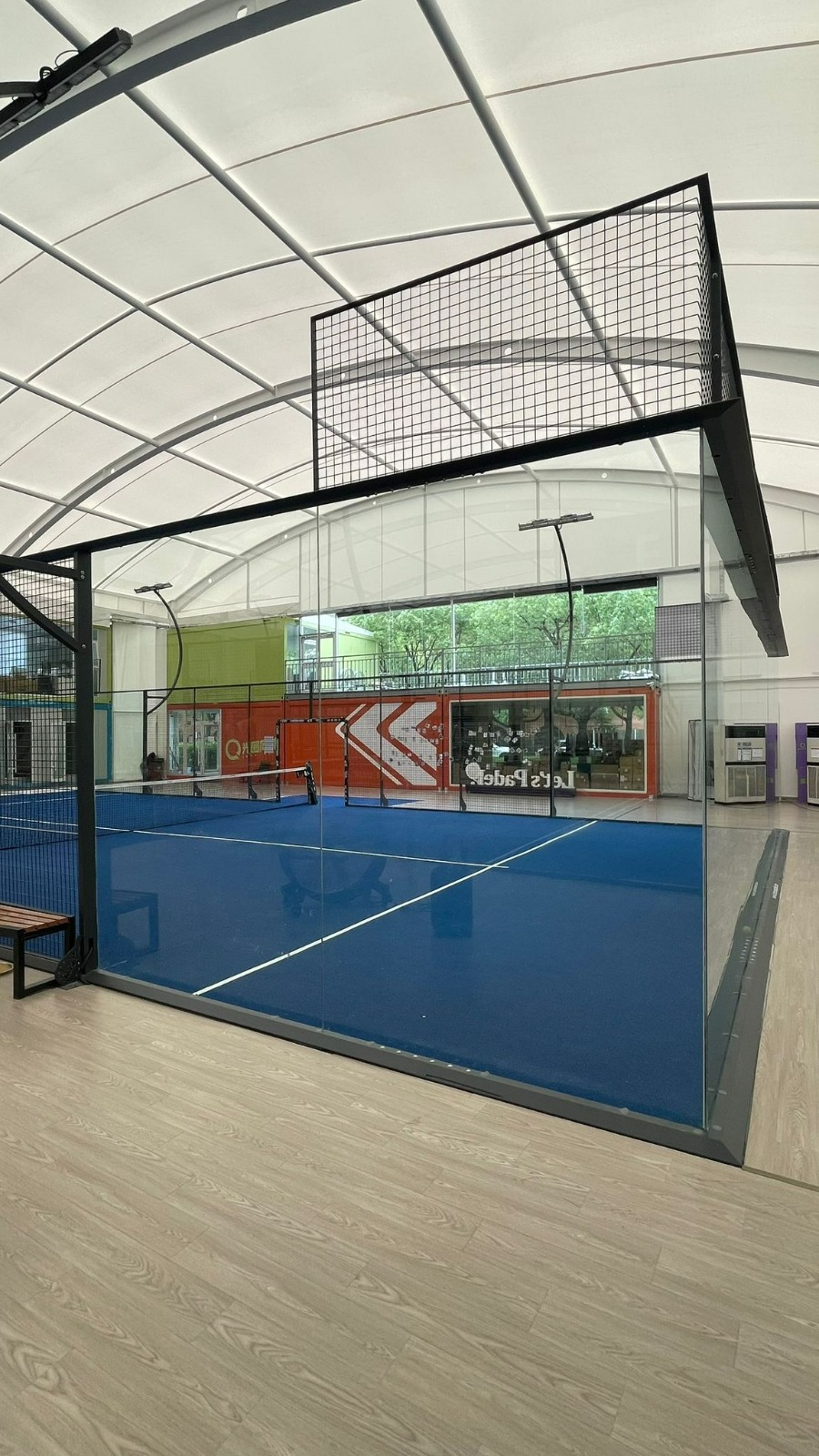

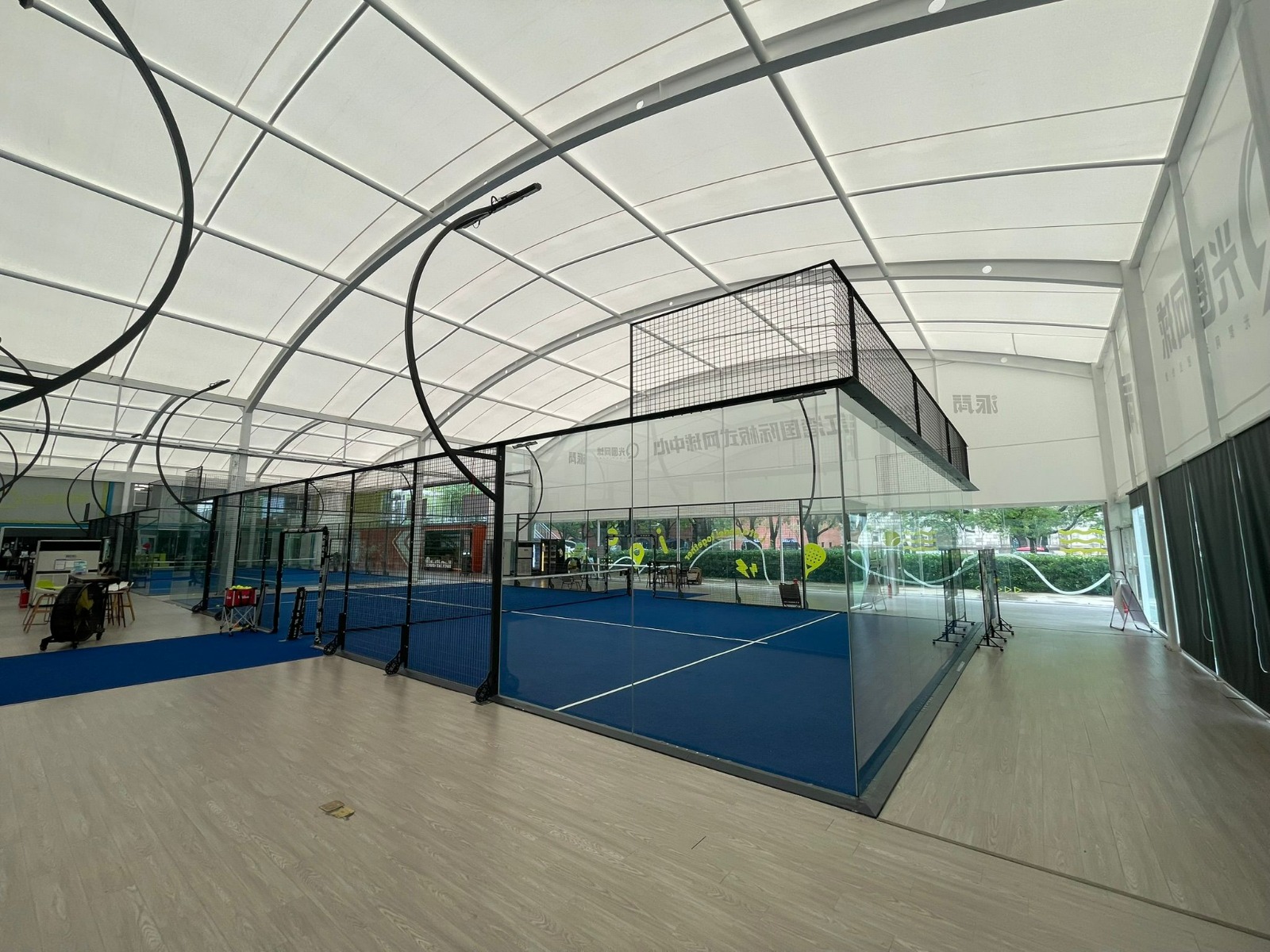

Ultra Panoramic Padel Court
Steel-plate frame, double mesh and 400 W lighting — our most open court structure. Our cleanest, tournament level court. No visible glass connectors.
ModelFX-P03P
- Steel-plate 5 mm frame panels
- Double mesh construction
- 400 W / 400 lux IP66 lighting
- Cleanest possible sightlines
Specification
Every detail, engineered.
Dimensions
20 × 10 m playing area (standard FIP dimensions)
Pillars & structure
Q235B steel square tube — 4 light pillars 100 × 50 × 3 mm, no corner pillars and no fence frame pillars
Frame
Q235B steel plate 2000 × 3000 mm, 5 mm thickness
Mesh
Double mesh, wire diameter 4 mm, spacing 50 × 50 mm
Tempered glass
12 mm tempered, EN 12150-2:2004 — 18 pcs of 1996 × 3000 mm
Playing surface
KDK monofilament curly, 10 mm pile, 46,200 stitches/m², 3/16" gauge, PP+PP backing, PU coating, EN 14041:2018. Filler: quartz sand Ø0.5–0.8 mm, 10 kg/m², visible fibre 2–3 mm
Net
Synthetic fibre — 10 m long, 0.88 m high at centre rising to 0.92 m at the posts (max tolerance 0.005 m)
LED lighting
4 lighting towers, 5 × 400 W LED · 400 lux · IP66
Light post
4 tubes at 3 m high, fitted with trim and tube up to 6 m — C-style
Components
Stainless steel 304 — rubber pads, bolts, glass fittings and hardware
Best for
Flagship venues, broadcast and indoor arenas
