Panoramic

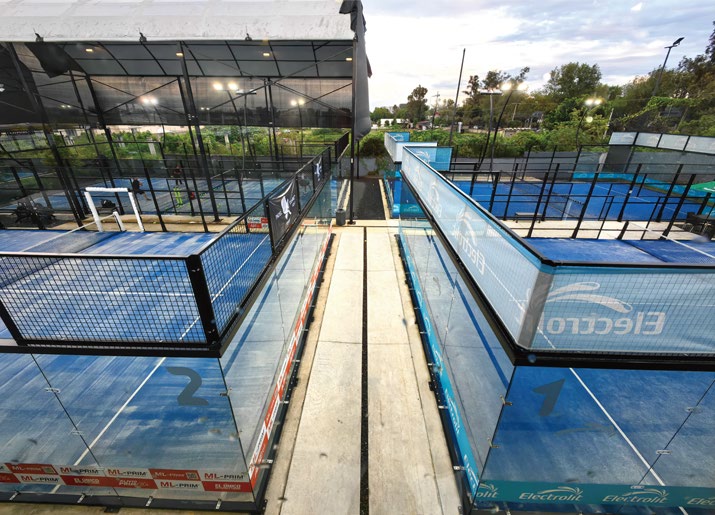

Full Panoramic Padel Court
No corner pillars. Uninterrupted glass on every side for players and spectators. Difference between Ultra is the visible glass connectors of each glass on top and bottom.
ModelFX-P03
- Zero corner pillars
- Curved-rod framed mesh panels
- 360° panoramic sightlines
- 12 mm EN 12150-2 tempered glass
Specification
Every detail, engineered.
Dimensions
20 × 10 m playing area (standard FIP dimensions)
Pillars & structure
Q235B steel square tube with no corner pillar — 4 light pillars 100 × 100 × 3 mm and 8 mesh pillars 100 × 50 × 3 mm
Frame
Q235B steel square tube 30 × 50 × 3 mm
Mesh
46 pcs mesh, wire diameter 4 mm, spacing 50 × 50 mm, framed with curved rod
Tempered glass
12 mm tempered, EN 12150-2:2004 — 18 pcs of 1996 × 3000 mm
Playing surface
KDK monofilament curly, 12 mm pile, 52,500 stitches/m², 3/16" gauge, 9000 Dtex, PP+Net backing, latex coating, EN 14041:2018. Filler: quartz sand Ø0.5–0.8 mm, 10 kg/m², visible fibre 2–3 mm
Net
Synthetic fibre — 10 m long, 0.88 m high at centre rising to 0.92 m at the posts (max tolerance 0.005 m)
LED lighting
4 lighting towers, 8 × 200 W LED · 300 lux · IP65
Light post
4 tubes at 3 m high, fitted with trim and tube up to 6 m — C-style
Components
Stainless steel 304 — rubber pads, bolts, glass fittings and hardware
Best for
Premium clubs, tournament venues, spectator-facing installations
