Classic

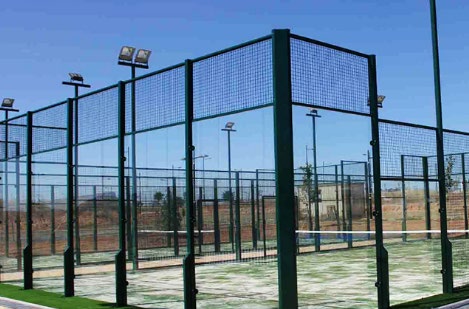

Classic Padel Court
The proven Q235B steel workhorse — heavy double pillars, full mesh walls, built to last.
ModelFX-P01
- Q235B structural steel throughout
- Reinforced 150 × 150 mm corner pillars
- 12 mm EN 12150-2 tempered glass
- Z-style or C-style light posts
Specification
Every detail, engineered.
Dimensions
20 × 10 m playing area (standard FIP dimensions)
Pillars & structure
Q235B steel square tube — 4 double pillars 100 × 50 mm reinforced to 150 × 150 mm at 4 m height, 12 pcs pillars 100 × 50 mm at 4 m, 12 pcs pillars 100 × 50 mm at 3 m
Frame
Q235B steel square tube 30 × 50 mm
Mesh
Wire diameter 4 mm, mesh spacing 50 × 50 mm
Tempered glass
12 mm tempered, EN 12150-2:2004 — 18 pcs of 1996 × 3000 mm
Playing surface
KDK monofilament curly, 12 mm pile, 52,500 stitches/m², 3/16" gauge, 9000 Dtex, PP+Net backing, latex coating, EN 14041:2018. Filler: quartz sand Ø0.5–0.8 mm, 10 kg/m², visible fibre 2–3 mm
Net
Synthetic fibre — 10 m long, 0.88 m high at centre rising to 0.92 m at the posts (max tolerance 0.005 m)
LED lighting
4 lighting towers, 8 × 200 W LED · 300 lux · IP65
Light post
4 tubes at 3 m high, fitted with trim and tube up to 6 m — Z-style and C-style available
Components
Stainless steel 304 — rubber pads, bolts, glass fittings and hardware
Best for
Clubs, academies, community and municipal facilities
