Covered

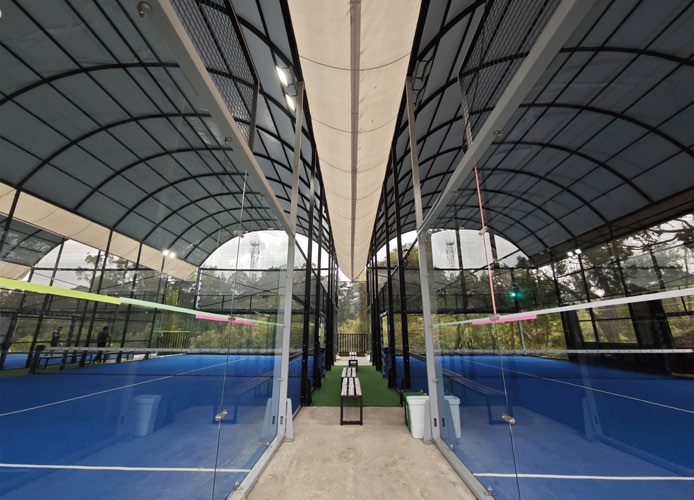

Covered Padel Court
Court and PVDF roof engineered as one — year-round play in any climate.
ModelFX-P05
- Double transparent PVDF roof
- 8.8 m top / 6 m side clearance
- Court and cover as one structure
- Natural daylight retained
Specification
Every detail, engineered.
Dimensions
20 × 10 m playing area (standard FIP dimensions)
Pillars & structure
4 pillars 100 × 100 × 3 mm at 6 m high; 8 posts 100 × 50 × 3 mm at 6 m and 4 posts 100 × 50 × 3 mm at 6 m
Frame
Q235B steel square tube 100 × 50 mm + 30 × 50 mm
Mesh
46 pcs mesh 1000 × 2000 mm framed with 30 × 50 mm tube, wire 4 mm, spacing 50 × 50 mm
Tempered glass
12 mm tempered, EN 12150-2:2004 — 18 pcs of 1996 × 3000 mm
Playing surface
KDK monofilament curly, 12 mm pile, 52,500 stitches/m², 3/16" gauge, 9000 Dtex, PP+Net backing, latex coating, EN 14041:2018. Filler: quartz sand Ø0.5–0.8 mm, 10 kg/m², visible fibre 2–3 mm
Net
Synthetic fibre — 10 m long, 0.88 m high at centre rising to 0.92 m at the posts (max tolerance 0.005 m)
LED lighting
4 lighting towers, 8 × 200 W LED · 300 lux · IP65
Light post
Integrated into the roof structure
Roof
Double transparent PVDF, 900 g/m² — top height 8.8 m, side height 6 m
Components
Stainless steel 304 — rubber pads, bolts, glass fittings and hardware
Best for
All-weather clubs, resorts, northern and rainy climates
